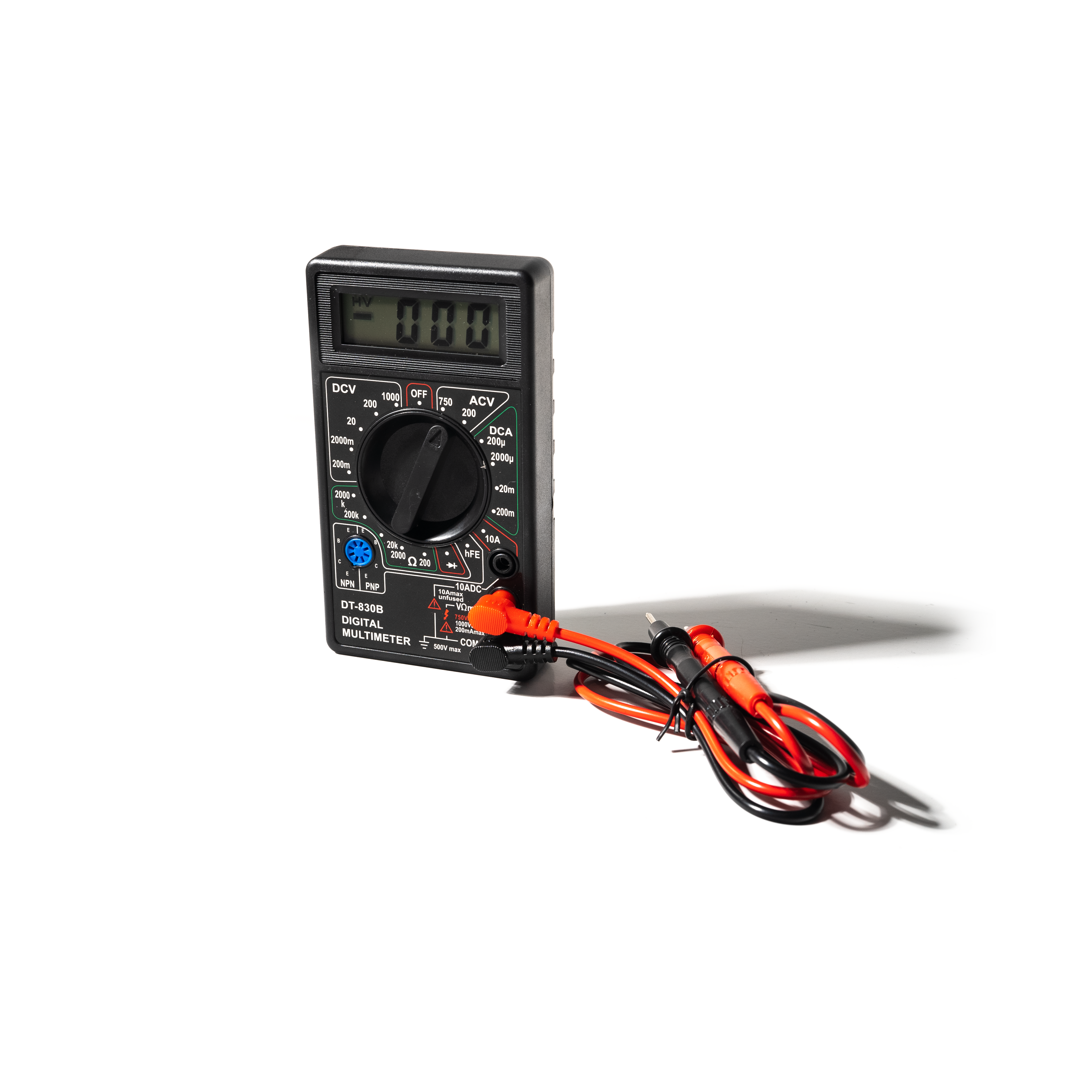

Digital Multimeter AC/DC 750/1000V LCD

Description

Material:Polypropylene+Digital Accessories

Size:123*68*22mm

Weight: 80g

Features:

Small and compact design ,low cost, pocket size ideal for hobby & DIY users, auto polarity display.

1.3 1/2 digits, 7segment, 0.5″high LCD Display.

2.Max display: 1999, Auto polarity display.

3.Small and compact design.

4.Sampling 2~3 times readings per second.

5. Diode assembly test / Transistor hFE test.

6.Low battery voltage indication.

Specification:

1.Model: DT-830B

2.Measuring range

3.Max AC Current: 10A

4.Max DC Voltage range: 1000V

5.Max AC Voltage range: 750V

6. Resistance Measurement: 200 Ohm-2000K Ohm range

7. Power Supply: 9V Battery (Not Included Here)

8.Color: Black

9.Size: Approx. 123 x 67 x 20mm/4.84 x 2.63 x 0.78” (L*W*H)

10.Scale degree & Accuracy

11. DC voltage: 200mV 100uv±(0.5% + 2)

2000mv 1mv

20v 10mv

200v 100mv

1000v 1v±(0.8% + 2)

13.AC voltage: 200V 100mv±(1.2% + 10)

750v 1v

14.DC current: 2000ua 1ua±(1% + 2)

20ma 10ua

200ma 100ua±(1.2% + 2)

10a 10ma±(2% + 2)

15.Resistance: 200Ω0.1Ω±(0.8% + 2)

2000Ω1

20kΩ10

200kΩ100

2000kΩ1000Ω±(1% + 2)

Note that this product does not have a buzzer!
