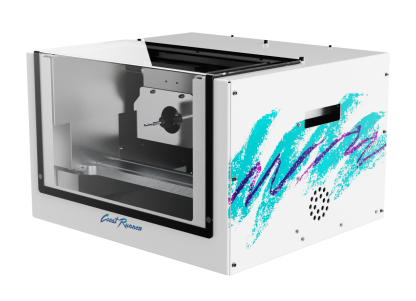

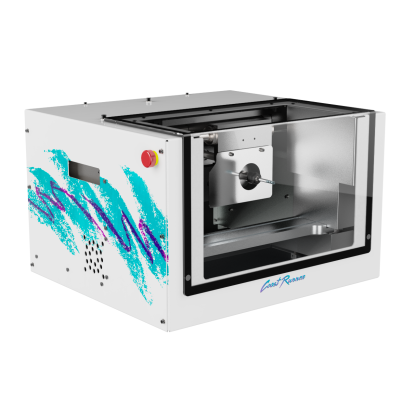

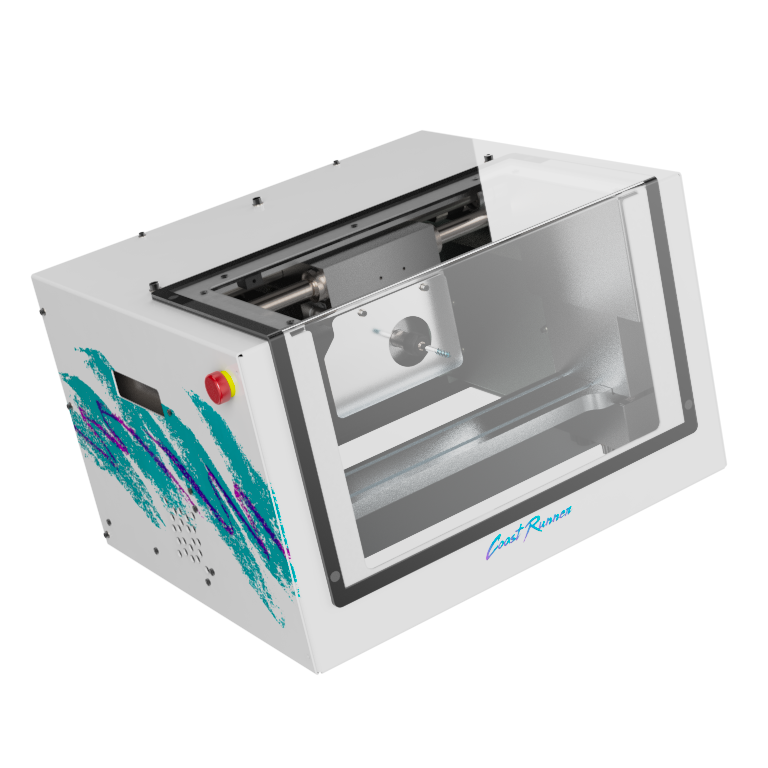

The Coast Runner Mill
The Coast Runner mill is a general-purpose and fully programmable CNC mill that gives you the ability to run your custom G-Code with ease on a variety of materials such as wood, aluminum, and steel, in the comfort of your own home.
| System Requirements |
|---|
| Windows 7+, Mac OSX 10.13+ |
| Parameter | Value | Unit | Note |
|---|---|---|---|
| Weight | 19 | Kg | ~42 pounds |
| X/Y/Z travel | 89/242/79 | mm | |
| X/Y/Z interior clearance | 116/299/162 | mm | Measurements with cover on |
| Peak Spindle Power | 375 | W | Overload protection prevents exceeding |
| Continuous Spindle Power | 190 | W | Long-term average, temperature limited. Can be exceeded. |
| Spindle speed | 1500-8000 | rpm | Variable, closed loop. Can apply full power at any rpm. |
| Max Linear Velocity | 2600 | mm/s | |
| Max Linear Acceleration | 250 | mm/s^2 | |
| Spindle runout | 0.0009 | in | Measured on tapered collet, 1mm from tip |
| T-Slot Spacing | 40 | mm | Center-to-center |
| Table T-slots | 2 | QTY | Compatible with 20 mm T-nuts |
| Collet system | ER11 | – | Accepts tools up to 8 mm |
| Machine Dimensions: |
|---|
| 270mm / 425mm / 380mm. |
